Advance ESCs for plane

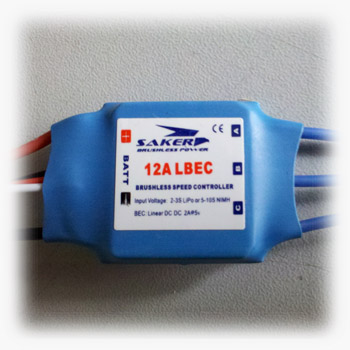

SAKER ESC-12A LBEC Weight: 13.1g with cable Size: 25x24x7mm Constant Current: 12A Max. Current: 15A (for 10 seconds) Input: 2-3s Li-Po ; 5-10s Ni-XX BEC: Max. 2A@5v Linear DC-DC PWM: 8KHZ

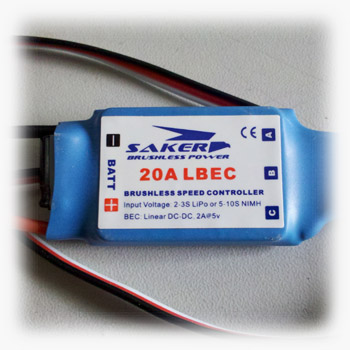

SAKER ESC-20A LBEC Weight: 19.9g with cable Size: 35x24x8mm Constant Current: 20A Max. Current: 23A (for 10 seconds) Input: 2-3s Li-Po ; 5-10s Ni-XX BEC: 2A@5v Linear DC-DC PWM: 8KHZ

SAKER ESC-20A SBEC Weight: 22.8g with cable Size: 35x24x8mm Constant Current: 20A Max. Current: 23A (for 10 seconds) Input: 2-4s Li-Po ; 5-12s Ni-XX BEC: Max. 3A@5.5v Switching DC-DC PWM: 8KHZ

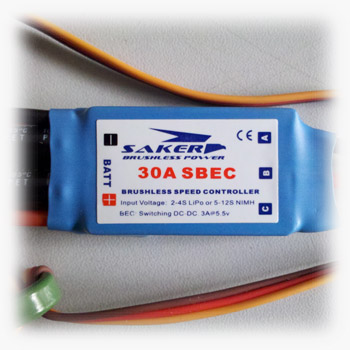

SAKER ESC-30A SBEC Weight: 30.4g with cable Size: 41x24x8mm Constant Current: 30A Max. Current: 35A (for 10 seconds) Input: 2-4s Li-Po ; 5-12s Ni-XX BEC: Max. 3A@5.5v Switching DC-DC PWM: 8KHZ

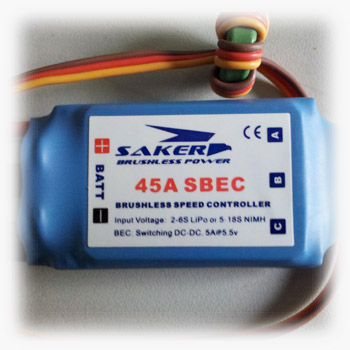

SAKER ESC-45A SBEC Weight: 55.4g with cable Size: 50x32x13mm Constant Current: 45A Max. Current: 55A (for 10 seconds) Input: 2-6s Li-Po ; 5-18s Ni-XX BEC: Max. 5A@5.5v Switching DC-DC PWM: 8KHZ

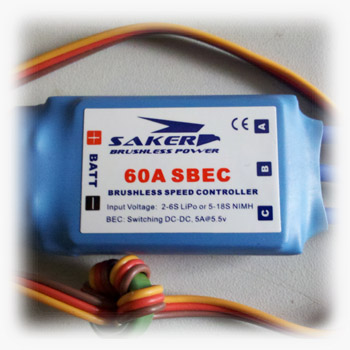

SAKER ESC-60A SBEC Weight: 58.1g with cable Size: 50x32x13mm Constant Current: 60A Max. Current: 70A (for 10 seconds) Input: 2-6s Li-Po ; 5-18s Ni-XX BEC: Max. 5A@5.5v Switching DC-DC PWM: 8KHZ

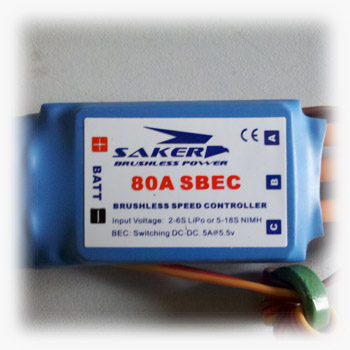

SAKER ESC-80A SBEC Weight: 67.3g with cable Size: 50x32x13mm Constant Current: 80A Max. Current: 90A (for 10 seconds) Input: 2-6s Li-Po ; 5-18s Ni-XX BEC: Max. 5A@5.5v Switching DC-DC PWM: 8KHZ

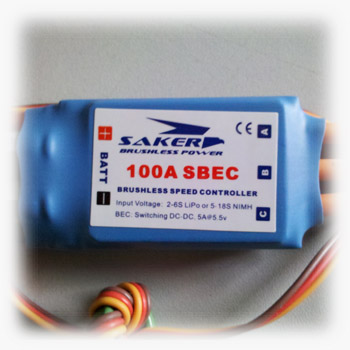

SAKER ESC-100A SBEC Weight: 70.6g with cable Size: 50x32x13mm Constant Current: 100A Max. Current: 110A (for 10 seconds) Input: 2-6s Li-Po ; 5-18s Ni-XX BEC: Max. 5A@5.5v Switching DC-DC PWM: 8KHZ

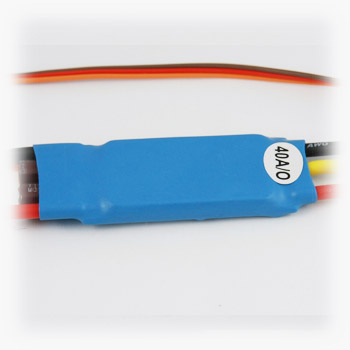

ESC-40A/O Weight: 36g Size: 52x25x8mm Constant Current: 40A Max. Current: 50A (for 10 seconds) Input: 2-6s Li-Po ; 6-16s Ni-XX BEC: OPTO PWM: 8KHZ

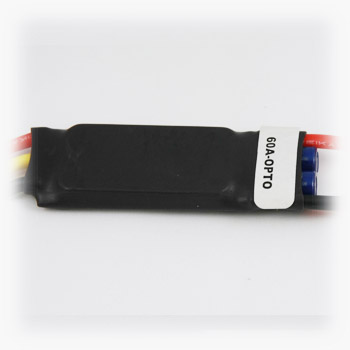

ESC-60A/O Weight: 38g Size: 52x25x8mm Constant Current: 60A Max. Current: 70A (for 10 seconds) Input: 2-6s Li-Po ; 6-16s Ni-XX BEC: OPTO PWM: 8KHZ

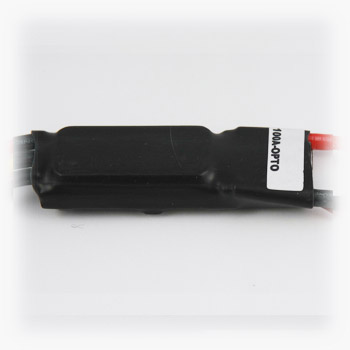

ESC-100A/O Weight: 45g Size: 52x25x12mm Constant Current: 100A Max. Current: 120A (for 10 seconds) Input: 2-6s Li-Po ; 6-16s Ni-XX BEC: OPTO PWM: 8KHZ

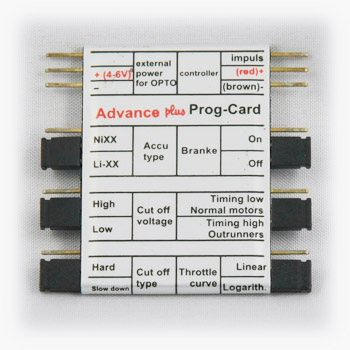

PROGCARD This product was developed for you to make Advance controllers setting easier and to extend the possibilities of controller settings too.

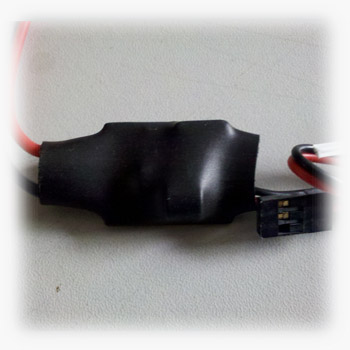

U-BEC Weight: 13.9g with cable Size: 25x20x8mm Input Volt: 42v MAX. Output Volt: 5.5v Optional Constant Current: 5A Max. Current: 6A
