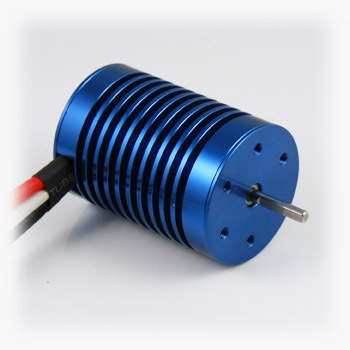

C40 Inrunner Brushless Motors

  • The most popular for 1/12 cars
  • Motor Diameter: 35.8mm
    Motor Length: 50mm
    Shaft Diameter: 3.17mm
    Shaft Length: 15mm
    Weight: 160g
    Mounting Hole Size: M3, pitch 25mm
    Mounting Hole Depth: 4mm Max.
    Order Name RPM/V No-load Current (7.4V) Max. Amps Resistance Max. RPM
    C40/9T 4300 2.4A 45A 0.0119 58000
    C40/10T 3900 2.2A 40A 0.0148 58000
    C40/11T 3600 1.9A 38A 0.0179 58000
    C40/12T 3300 1.6A 35A 0.0213 58000
    C40/13T 3000 1.4A 32A 0.0248 58000
